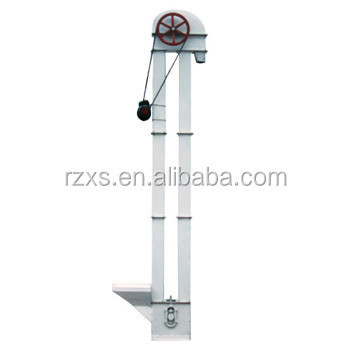

Modern automatic low price DT series small rice mill bucket elevator
Usage:
It is used to lift loose granular materials vertically,whose density is not more than 2 t/m3, with high speed.It can be used in different rice mill plant to satisfy different capacity requirement.
Product Features:
1.Small installation space,large capacity, high lifting height
2. Total enclosed structure with good sealing,no dust leak out.
3. Materials are fed into the bucket evenly ;
4. The height of elevator is customized according to real condition;
5. The bucket tension can be adjusted easily;
6. Less back-flow.
Working Principle
The driving device drives the pulley to make the belt with plastic buckets do circular movement from head to tail.There is feeding inlet at tail and discharging outlet at head.Thus materials are fed from the bottom and discharged from the top.
The bucket filled with material goes to the head section, then the material is thrown out from the outlet under the action of centrifugal force.The empty bucket goes back to the tail section and filled with material at the inlet again,then lifted up to head section and do parabolic discharge movement for discharging. The cycle realizes the vertical transportation of materials.
Main Technical Parameters:
| Type | Capacity (Kg/h) | Power (Kw) | Notes | Weight(kg) |
| DT4 | 3500-4500 | 0.75 | Plastic Bucket | 230 |
| DT6 | 5000-6000 | 1.1 | Plastic Bucket | 260 |
| DT8 | 7000-8000 | 2.2 | Plastic Bucket | 350 |
| DT15 | 12000-16000 | 3 | Plastic Bucket | |
